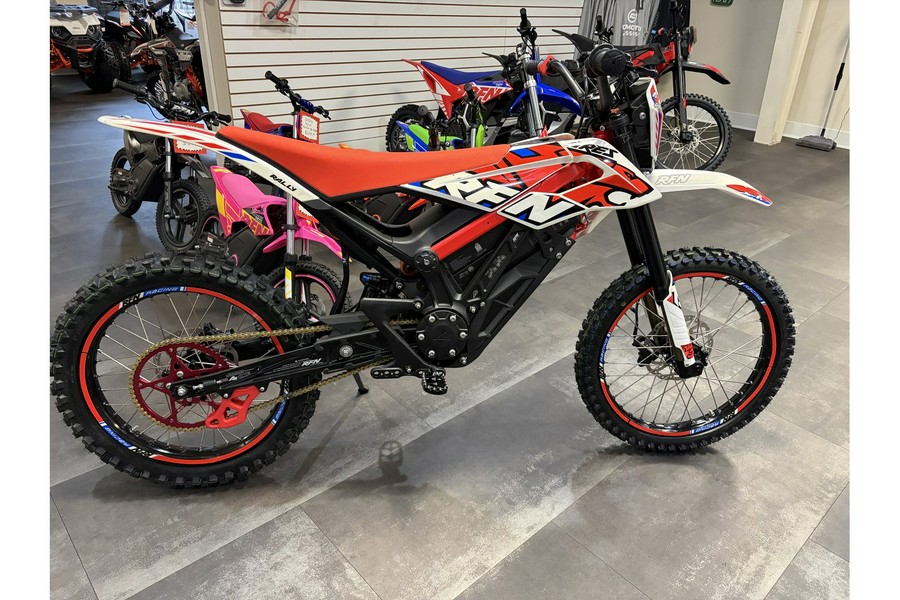

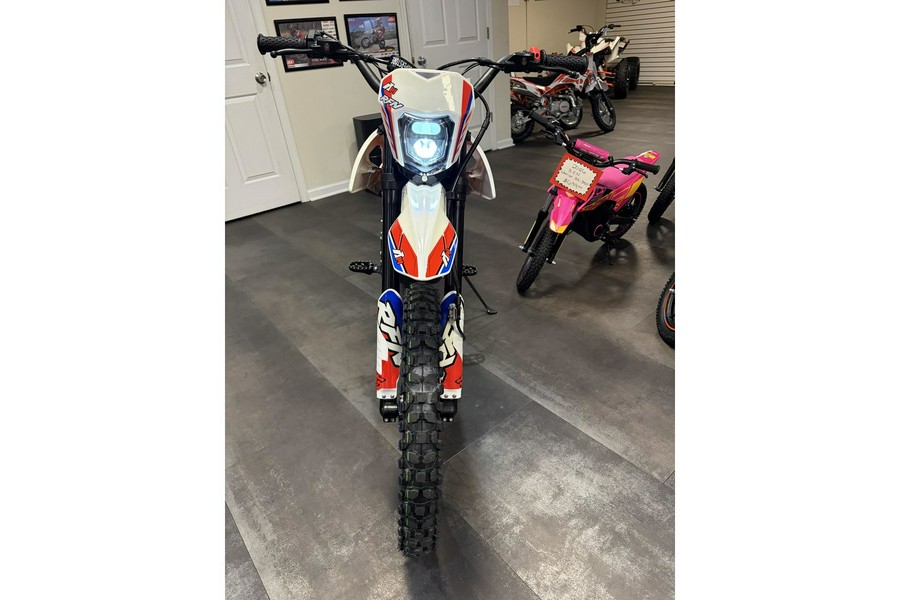

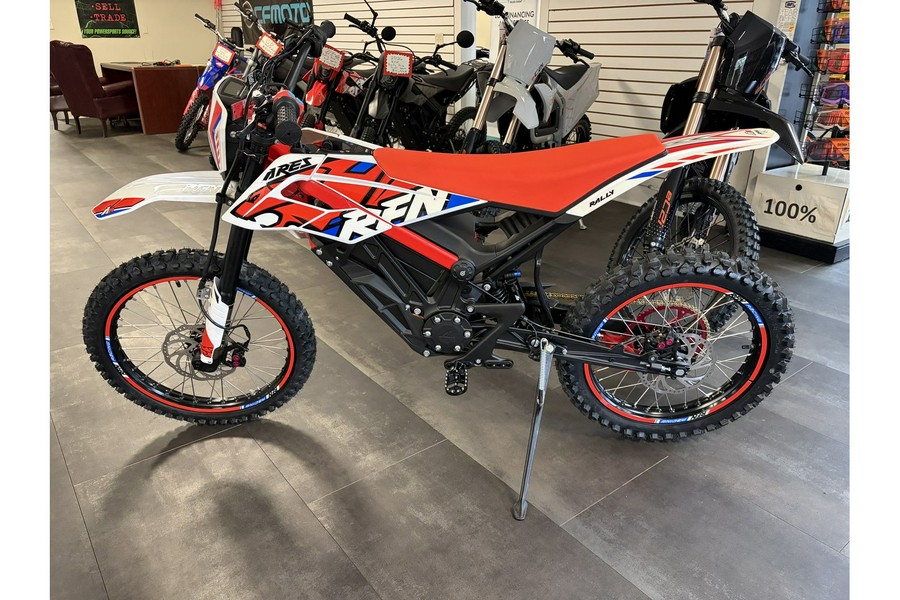

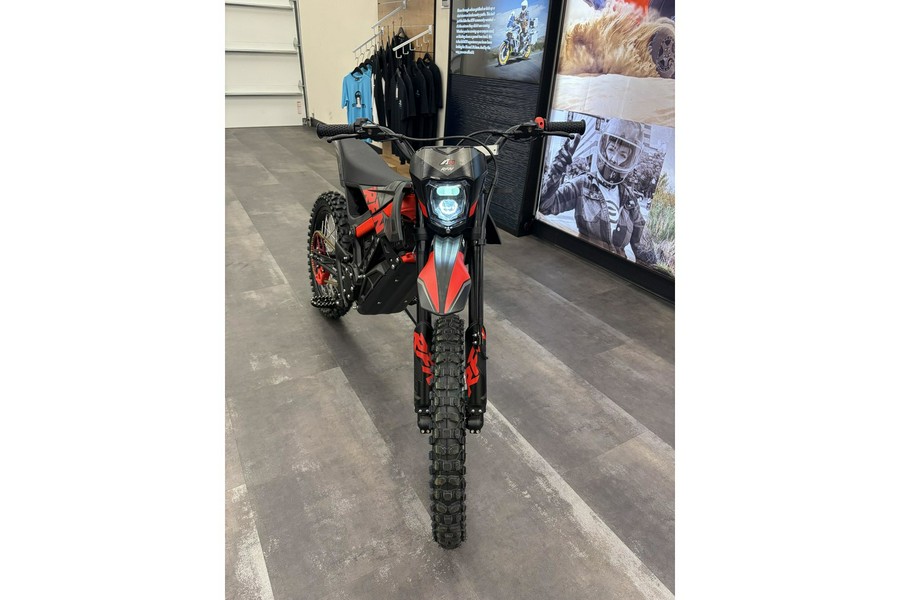

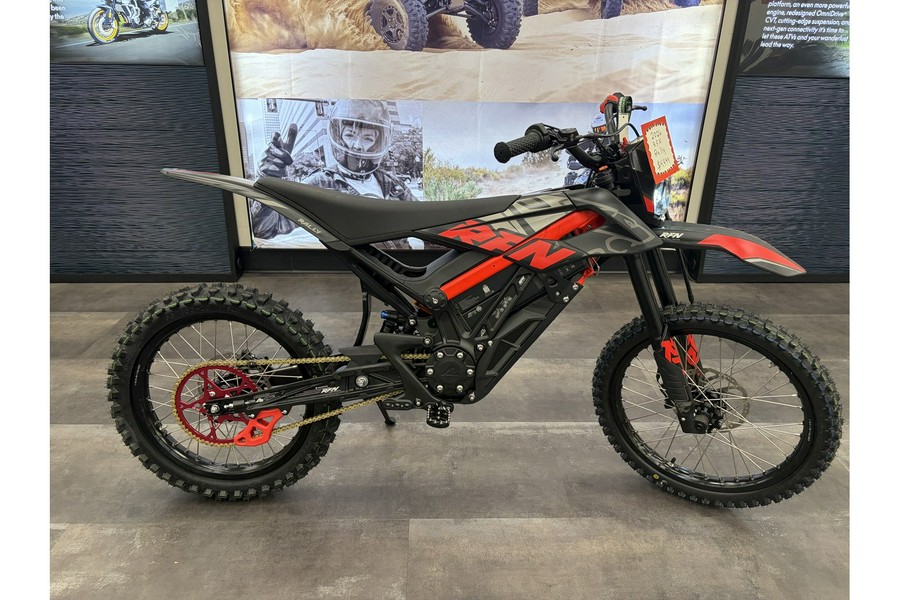

2026 RFN RALLY

RFN - Racing Fears Nothing
ARES RALLY- 5000 watt
** Financing is Available at www.bigtoysuperstore.com

TECHNICAL SPECIFICATIONS
90 miles
CITY RANGE
2590Wh
BATTERY
12.5 kw
PEAK POWER
200 mm
SHOCK ABSORBORS
TOP SPEED
50 mph
Battery
Capacity:43Ah / 2590Wh
Cells:18650 lithium cells
Features: Removable, can be charged when installed in bike or separately.
Voltage (nominal):72V
Dimensions
Fork angle:24°
Ground clearence:320mm – 12.60”
Offset:15mm in triple clamps, 45mm-48mm in forks
Seat height:860mm – 33.86”
Wheel base:1330mm – 52.36”

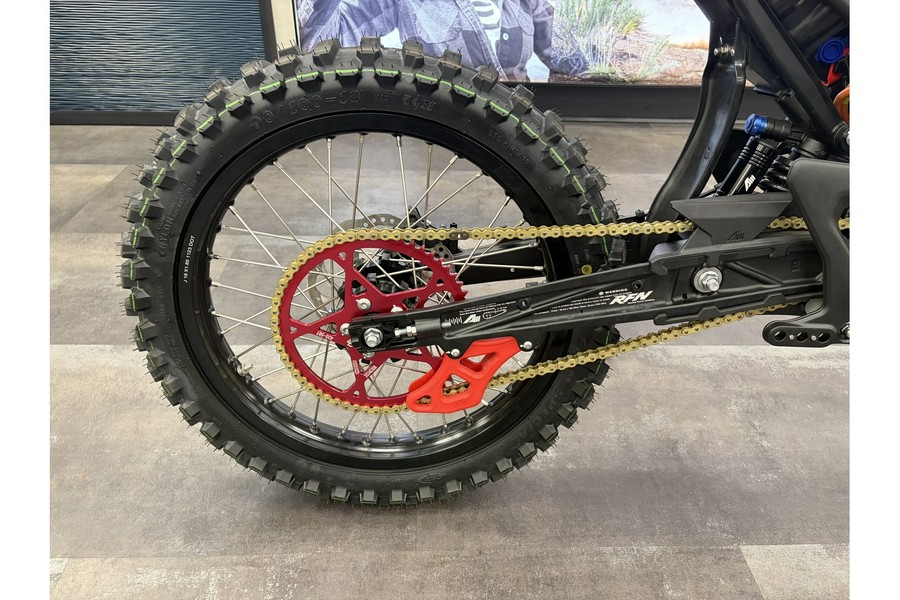

Drivetrain
Chain:420 chain with DX
Electric motor:Internal Rotor Permanent Magnet Synchronous Motor
Front sprocket:11 teeth
Nominal power:5.0 kW
Peak power:12.5 kW**
Rear sprocket:58 teeth
Torque (motor axle):69 N·m
Torque (wheel):364 N·m
Type: Direct drive, chain, right side drive
Charging
0-100%: 2-3 hours
0-80%: 1-2 hours
Type: Variable voltage External charger for 100V-240V outlets
Charging Input: Quick charging 5 A @ 220 V (AC)
Charging Power:840 W @ 84 V 10 A (DC)

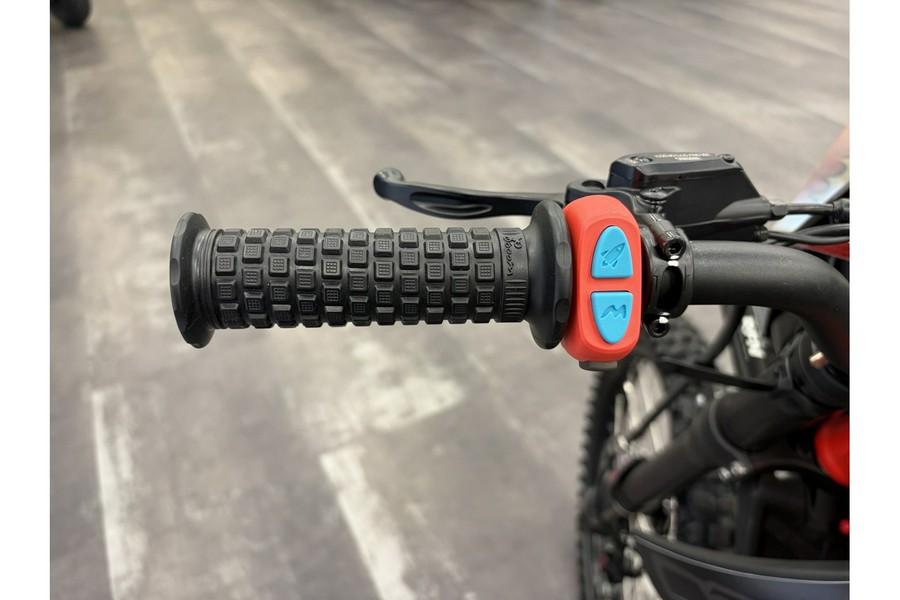

Ride modes
Ride mode 1:Turtle Mode: 96km @ 45km/h
Ride mode 2:Rabbit Mode: 50km @ 78km/h
Ride mode 3:Rocket Mode: Catapult start mode, peak current 150A, No time limit
Ride mode 4:Reverse mode: Limited to 9 km/h
Frame
Build:6082 aluminium – extruded, forged and iron frame
Rear flat fork6082 forged aluminum alloy – Enhanced Modularity

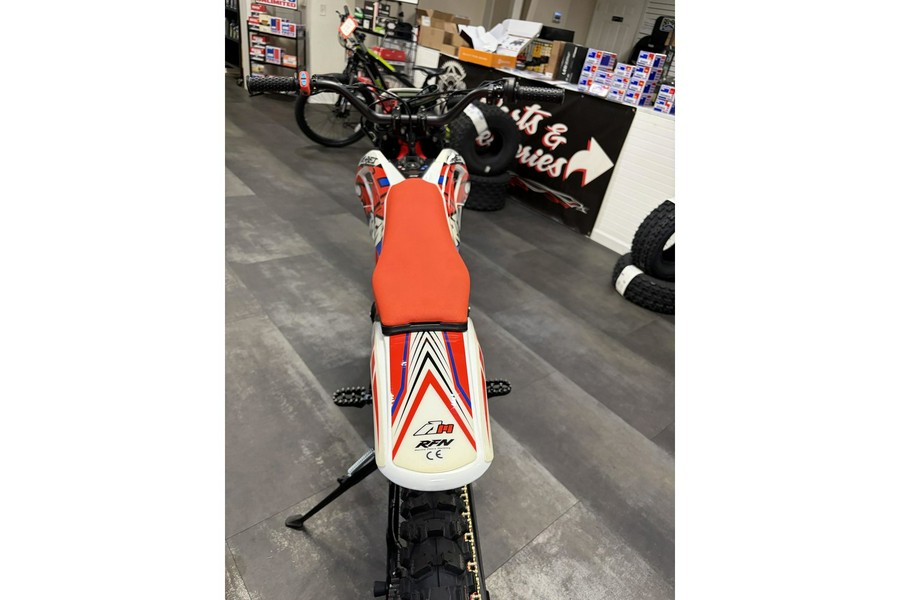

Seat cushion leather (Vinyl)
Suspension

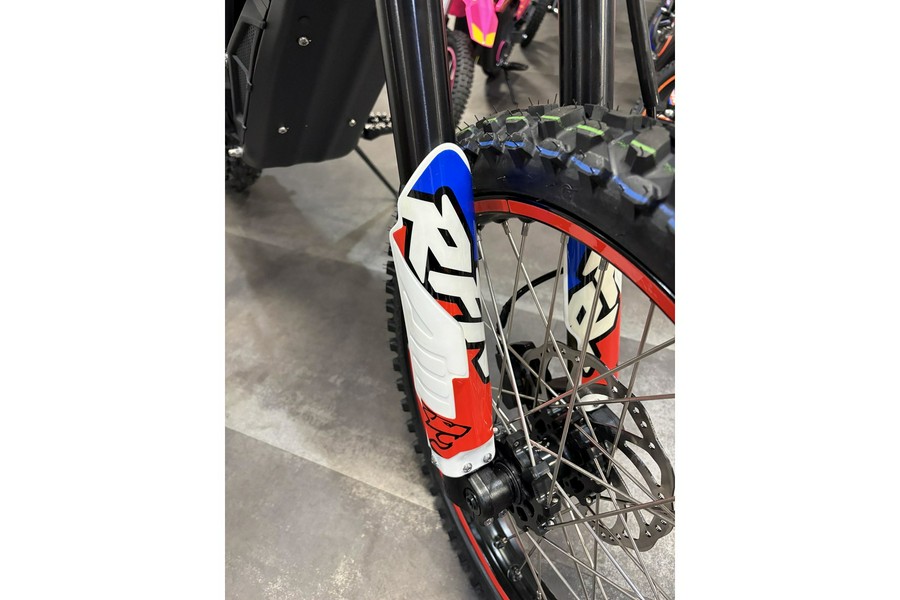

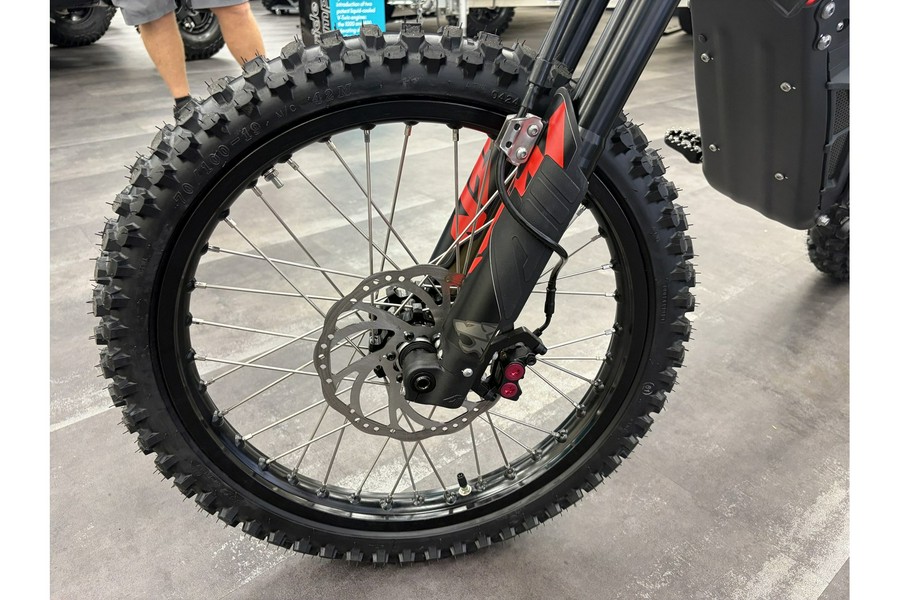

FRONT SUSPENSION
Travel: 200mm
Type: Upside-down air forks featuring 45mm-48mm stanchion tubes for extra rigidity and strength, Double shoulder adjustable front damper.

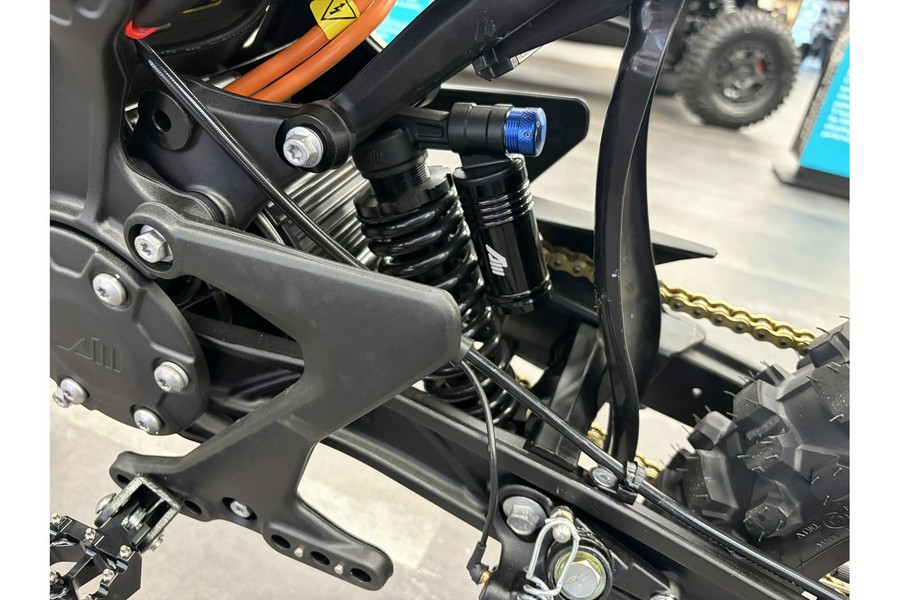

REAR SUSPENSION
Travel: 68mm（wheel travel 180mm）/59mm（wheel travel 150mm）
Type:240mm shock ,Compression damping / rebound damping adjustable + Spring preload adjustable.

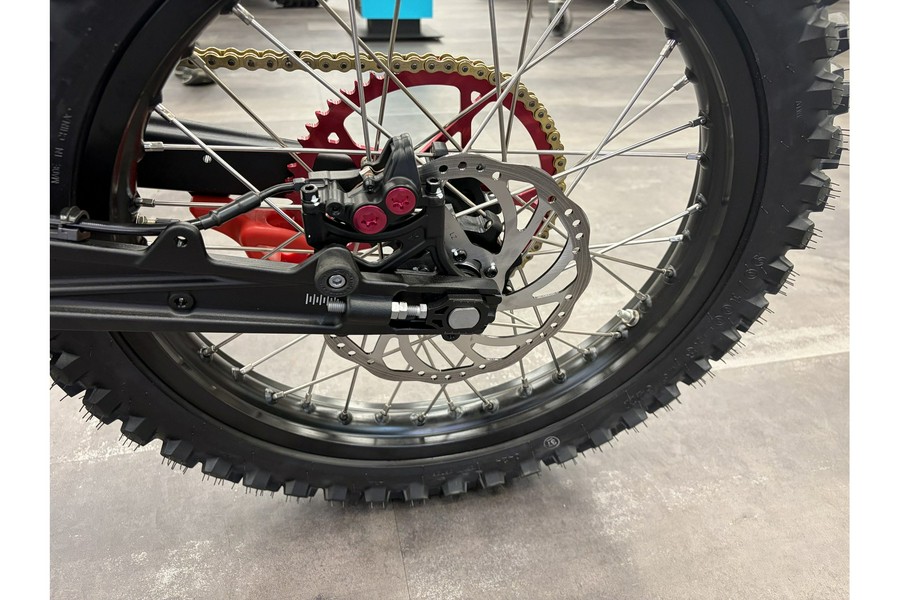

Wheels & Tires
Hubs: Forged and CNC aluminum RFN hubs with 20mm axle
Rims: F 19″/ R 18″ (Motorcycle standard) re-enforced, Straight Pull Spokes, 7116 aluminums
Tires: F: Kenda K783 70/100-19 OFF-ROAD, R: Kenda K783 90/100-OFF-ROAD
