2024 Moto Guzzi Stelvio

TRAVEL WITHOUT LIMITS
Riding Stelvio is about savoring the open road in pure Moto Guzzi fashion, with no desire to be anywhere else in the world. The modern adventure tourer by Moto Guzzi is ready to accompany you everywhere with its unique style and state-of-the-art technology made to improve your driving experience.

Comfort

NO ROAD IS OFF LIMITS: Comfort is found in every detail of the Stelvio and no road is off limits, regardless of the load. Thanks to the 19-inch front wheel, 170-mm suspension travel, a spacious saddle sitting just 830 mm off the ground, electrically adjustable windshield and bags with built-in clips.

Features

DASHBOARD AND TECHNOLOGY: Stelvio is oufitted with a state-of-the art technologycal package that integrates advanced features like Cornering ABS and traction control, Full LED lights, Cruise Control, a 5" full color display and five customizable riding modes, including an off-road mode.
SUSPENSION: The suspensions are fitted with a fork with adjustable 46-mm hydraulic extension and preload stanchions, a single shock absorber with remote spring preload and 170 mm travel, allowing the engine to quickly adapt to trips with a passenger on board.

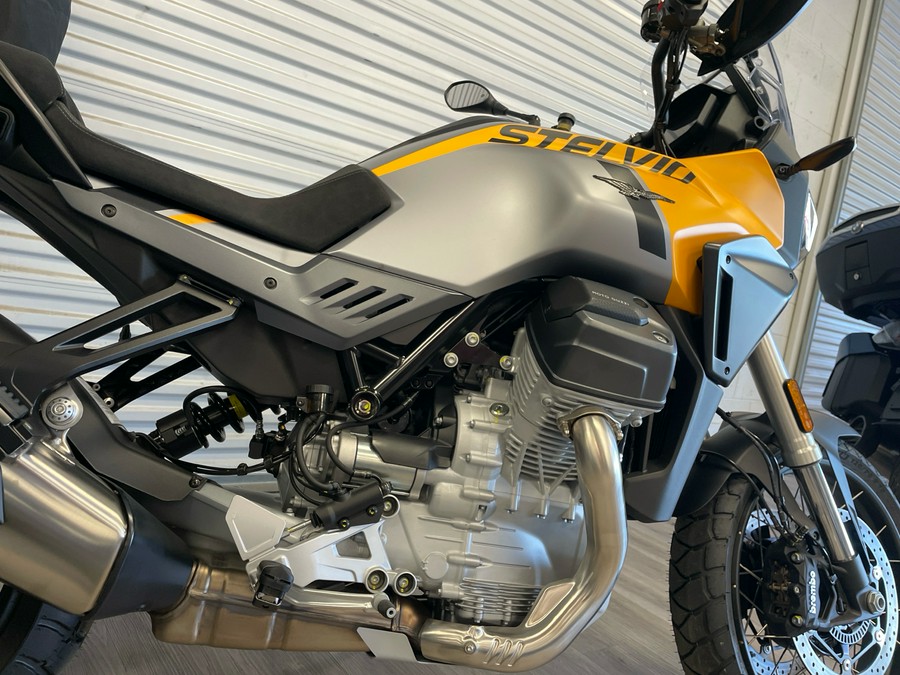

MOTOR: Stelvio is driven by the innovative Moto Guzzi V-Twin "Compact Block" Euro5+ engine, complete with shaft drive transmission. Its performance perfectly complements its design, thanks to its 1,042 cc engine, delivering a maximum power of 115 HP at 8,700 rpm and a peak torque of 105 Nm at 6,750 rpm.
BRAKES: The 19-inch spoked front wheel with tubeless tyre and the Brembo brake system deliver more dynamic riding control, maximum comfort and greater hold on less conventional roads.

Rideability

BORN TO TRAVEL: Stelvio was designed to allow you to make the most of every ride and expand your horizons without boundaries, thanks to its 21-litre tank with a range of over 400 km. At its core is the tubular steel frame that facilitates handling of the motorbike, obtaining the optimal compromise between agility and stability.

Style

AN UNMISTAKABLE DESIGN: Solid, compact and powerful, the Moto Guzzi heritage can be seen in every detail. From its iconic "Compact Block" V-Twin engine to its unique single-sided swing-arm and its distinctive eagle-shaped DRL, each element is designed to bring into being Stelvio. Engine Type: V Twin
Displacement: 63.6 cu. in. (1042 cc)
Bore and Stroke: Bore: 3.78 in. (96 mm); Stroke: 2.83 in. (72 mm)
Cooling: Liquid
Compression Ratio: 12:6:1
Fuel System: Gas
Transmission: Manual
Final Drive: 1.58
Front Suspension: Inverted Fork
Rear Suspension: Single Sided Swing Arm
Front Brakes: Dual Hydraulic Disc
Rear Brakes: Hydraulic Disc
Front Tire: Michelin® Anakee Adventure: 120/70 - R19
Rear Tire: Michelin® Anakee Adventure: 170/60 - R17
Wheelbase: 59.8 in. (1520 mm)
Seat Height: 32.7 in. (830 mm)
Rake: 25.6
Trail: 4.6 in. (116.4 mm)
Fuel Capacity: 5.5 gal. (21 L)
MPG: 46.1
Dry Weight: 489.4 lb. (222 kg.)
Speedometer: Standard
Tachometer: Standard
Odometer: Standard
