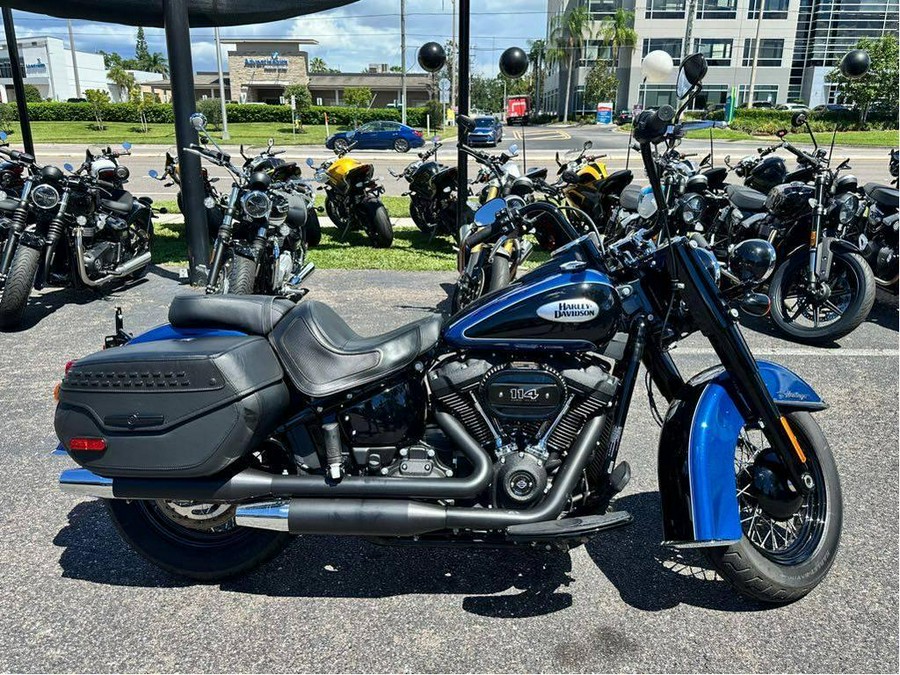

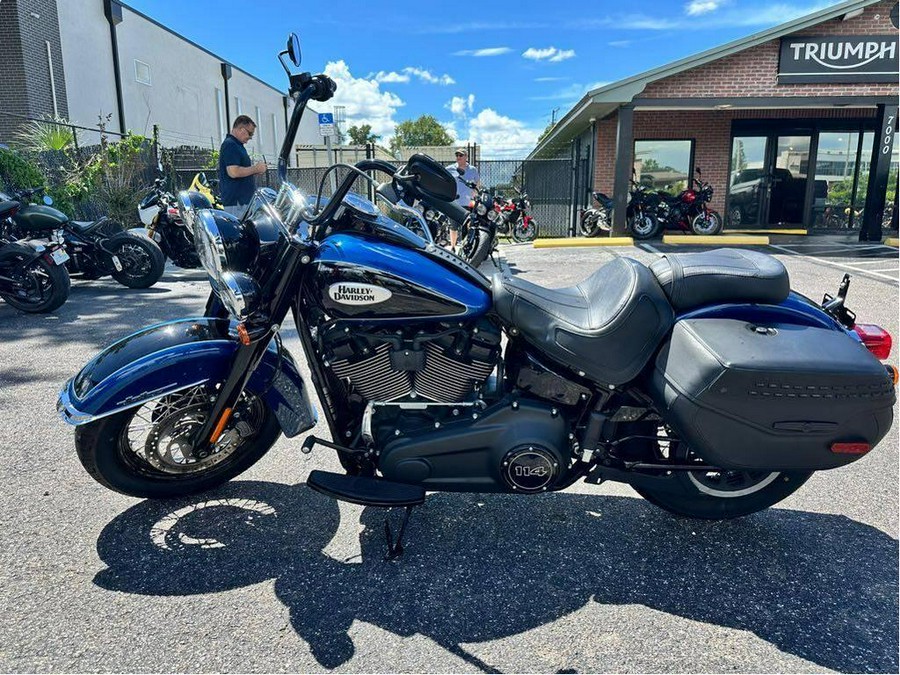

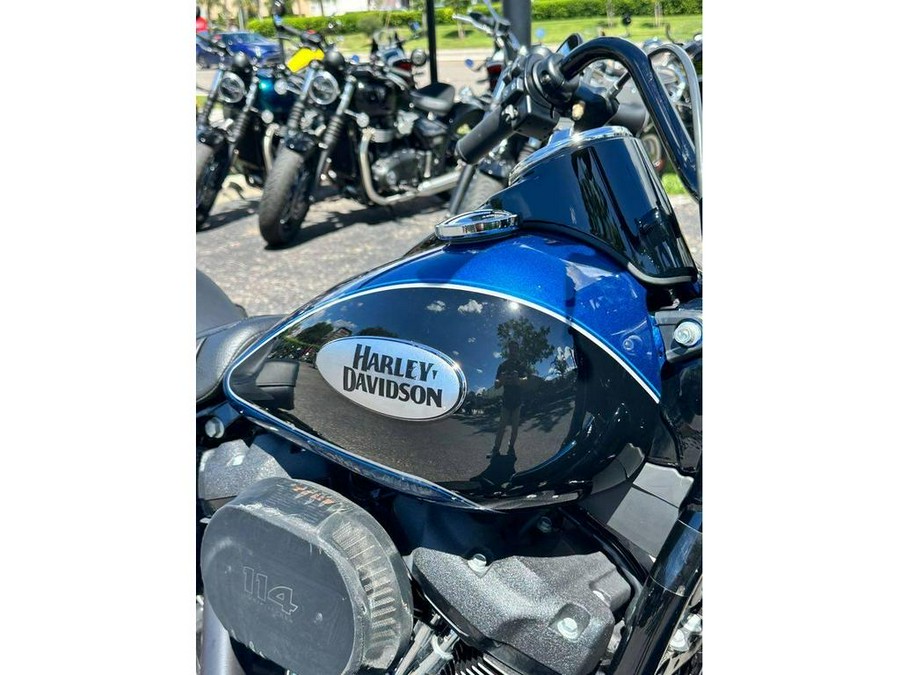

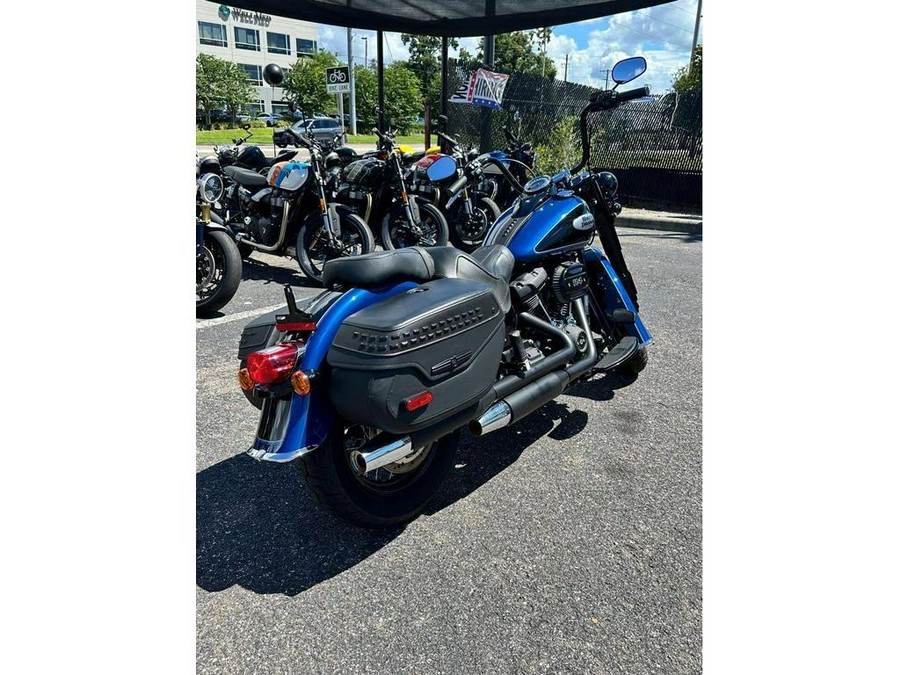

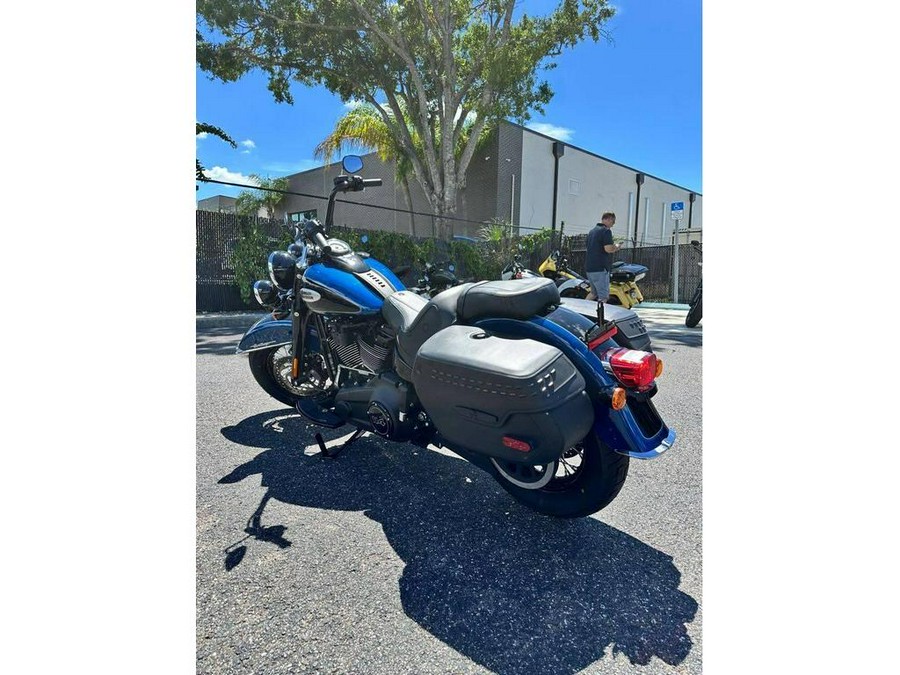

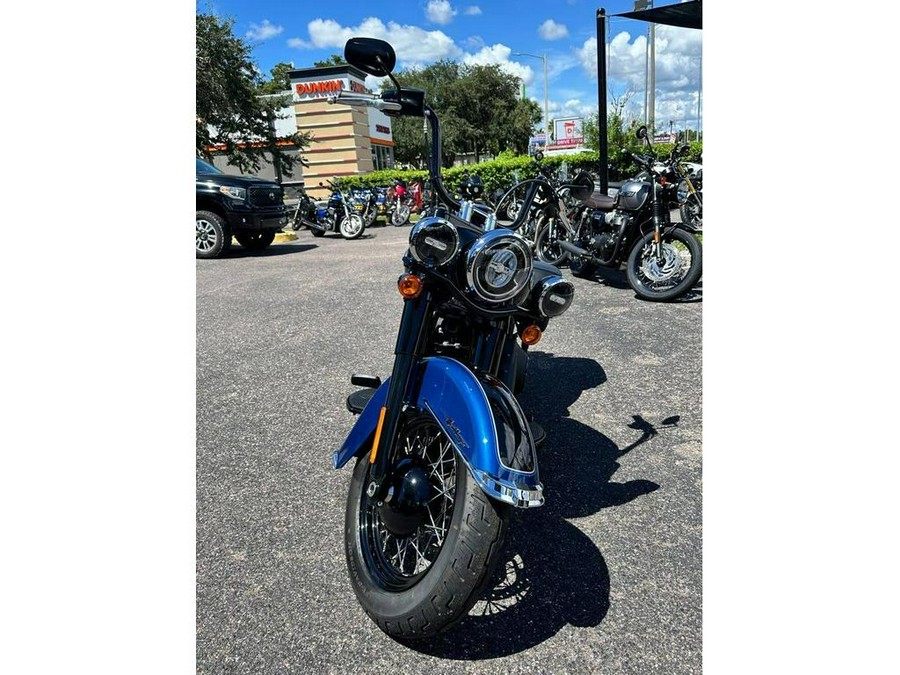

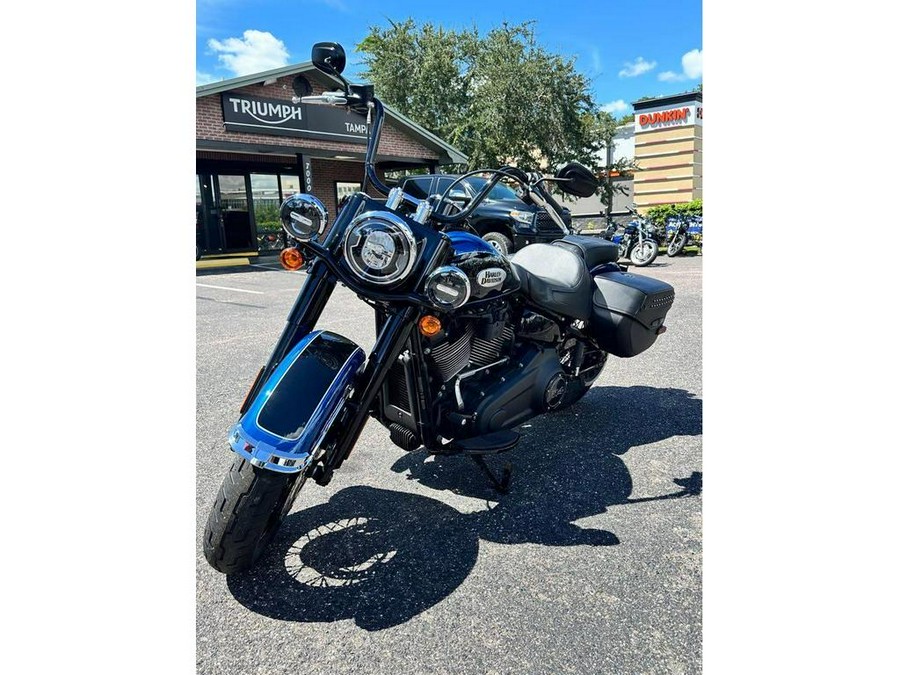

2022 Harley-Davidson SOFTAIL HERITAGE CLASSIC 114

The quintessential American cruiser. Showstopping vintage details and pure rock and roll style.

THIS IS THE RIGHT BIKE FOR

•Riders ready to chase excitement across state lines

•Highway riding with full fenders and detachable windscreen

•Milwaukee-Eight® 114 V-Twin engine and steel laced wheels

Features\* Milwaukee-eight® Big Twin Engine: A powerful, cool-running engine with crisp throttle response and a pure, soul-satisfying rumble.
\* Lockable And Sealed Saddlebags: A sleek look on the outside and roomy on the inside with enough space to stash your riding essentials. The lids open with one touch.
\* Detachable Windscreen: Go from touring to cruising in a heartbeat. Leave the screen on for a clean envelope of air over the long haul. Or remove it in seconds for a completely new look and ride.
\* High Performance Rear Mono Shock: Easily adjustable mono-shock rear suspension allows for dynamic cornering capability while preserving the hardtail look.

Dimensions\* Length: 95.1 in.
\* Seat Height, Laden: 26.3 in.
\* Ground Clearance: 4.7 in.
\* Rake: 30
\* Trail: 5.5 in.
\* Wheelbase: 64.2 in.
\* Tires, Front Specification: 130/90B16,73H,BW
\* Tires, Rear Specification: 150/80B16,77H,BW
\* Tire, Type: Dunlop® Harley-Davidson Series, bias blackwall front and rear
\* Fuel Capacity: 5 gal.
\* Oil Capacity (w/filter): 5 qt.
\* Weight, As Shipped: 697 lb.
\* Weight, In Running Order: 728 lb.
\* Luggage Capacity -volume: 1.5 cu ft

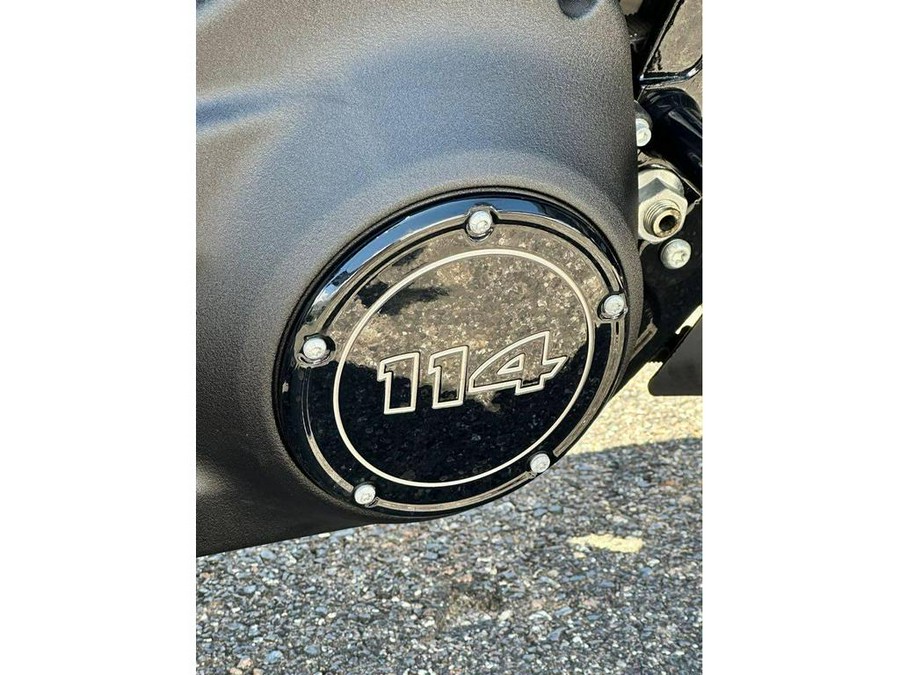

Engine\* Engine: Milwaukee-Eight® 114
\* Bore: 4.016 in.
\* Stroke: 4.5 in.
\* Displacement: 114 cu in
\* Compression Ratio: 10.5:1
\* Fuel System 3: Electronic Sequential Port Fuel Injection (ESPFI)
\* Exhaust: 2-into-2 shorty dual; catalyst in muffler

Performance\* Engine Torque Testing Method: J1349
\* Engine Torque: 119 ft-lb
\* Engine Torque (rpm): 3000
\* Lean Angle, Right (deg.): 27.3
\* Lean Angle, Left (deg.): 28.5
\* Fuel Economy Testing Method: Estimated City/Hwy
\* Fuel Economy: 47 mpg

Drive Train\* Primary Drive: Chain, 34/46 ratio
\* Gear Ratios (overall) 1st: 9.311
\* Gear Ratios (overall) 2nd: 6.454
\* Gear Ratios (overall) 3rd: 4.793
\* Gear Ratios (overall) 4th: 3.882
\* Gear Ratios (overall) 5th: 3.307
\* Gear Ratios (overall) 6th: 2.79

Chassis\* Front Fork: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
\* Rear Shocks: Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment
\* Wheels, Optional Style Type: Black or chrome, steel laced (based on trim)
\* Wheels, Front Type: Gloss black, 9-spoke cast aluminum
\* Wheels, Rear Type: Gloss black, 9-spoke cast aluminum
\* Brakes, Type: Solid, uniform expansion rotors
\* Brakes, Caliper Type: 4-piston fixed front and 2-piston floating rear

Electric\* Lights (as Per Country Regulation), Headlamp, Tail/stop/front Signal Lights: All LED, low beam, high beam and signature position lamp, Incandescent Zeppelin tail lamp, Incandescent bullets, Incandescent bullet light bar
\* Gauges: 5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
NOTES:Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Recommended 91 octane (95 RON) or higher fuel (R+M)/2.

Values shown are nominal. Performance may vary by country and region.

Standard and optional fuel systems may vary by country.

Estimated from fuel economy tests on a sample motorcycle from the corresponding family conducted by Harley-Davidson under ideal laboratory conditions. Not all motorcycle models undergo fuel economy testing. Fuel economy and mileage may vary among motorcycle models within a family. Your mileage may vary depending on your personal riding habits, weather conditions, trip length, vehicle condition and vehicle configuration and other conditions. Break-in mileage may vary.

Measurement reflects 180 lb. (81.7 kg) operator weight.

North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.

Standard and optional wheels may vary by country and region.
