2004 Harley-Davidson Softail® Fat Boy®

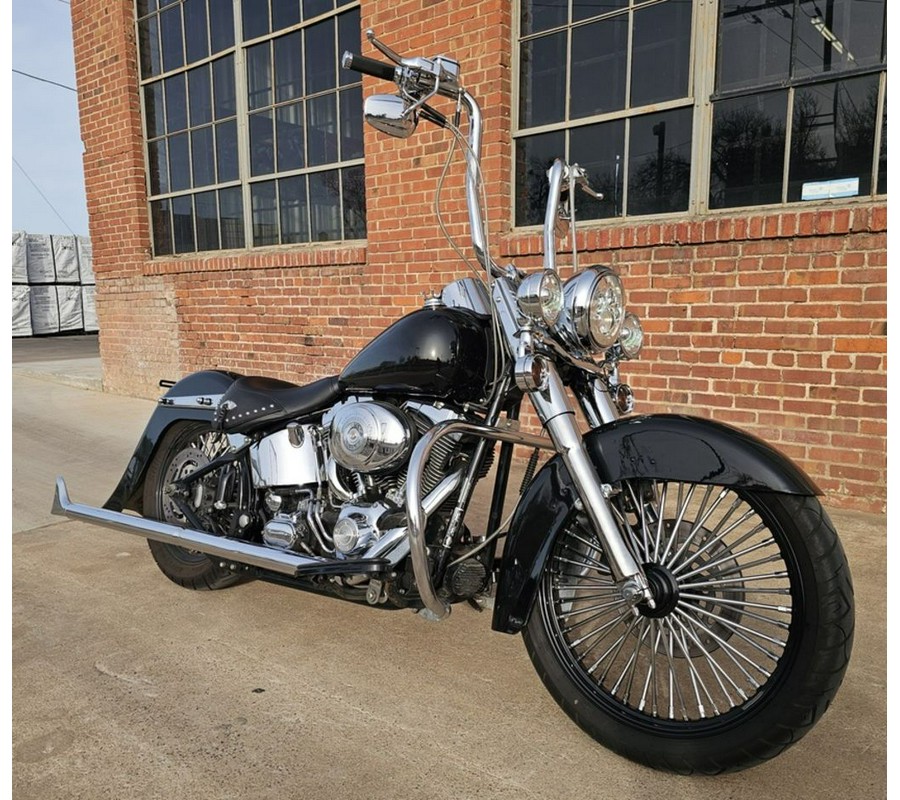

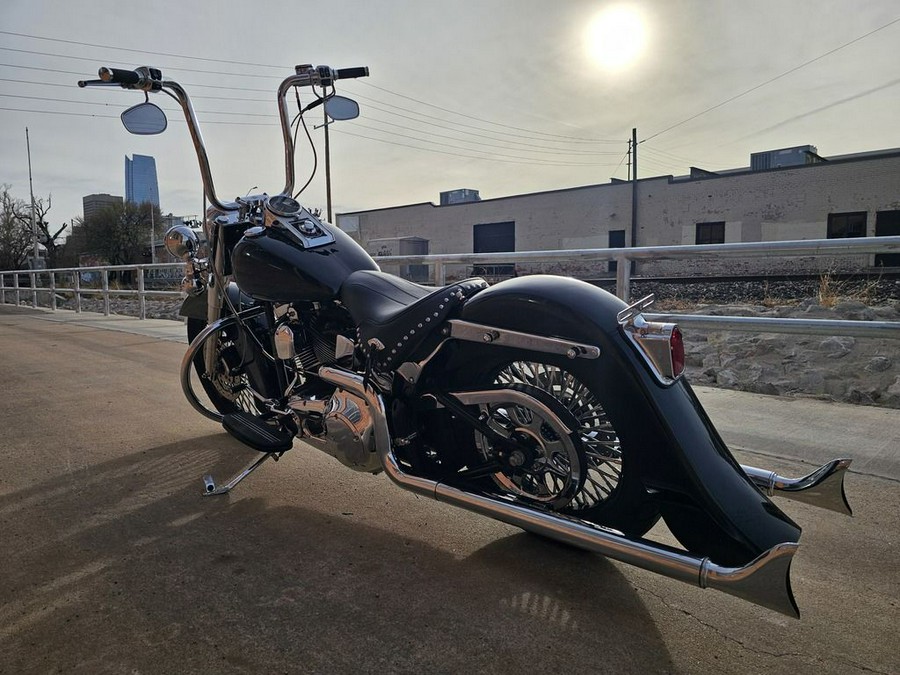

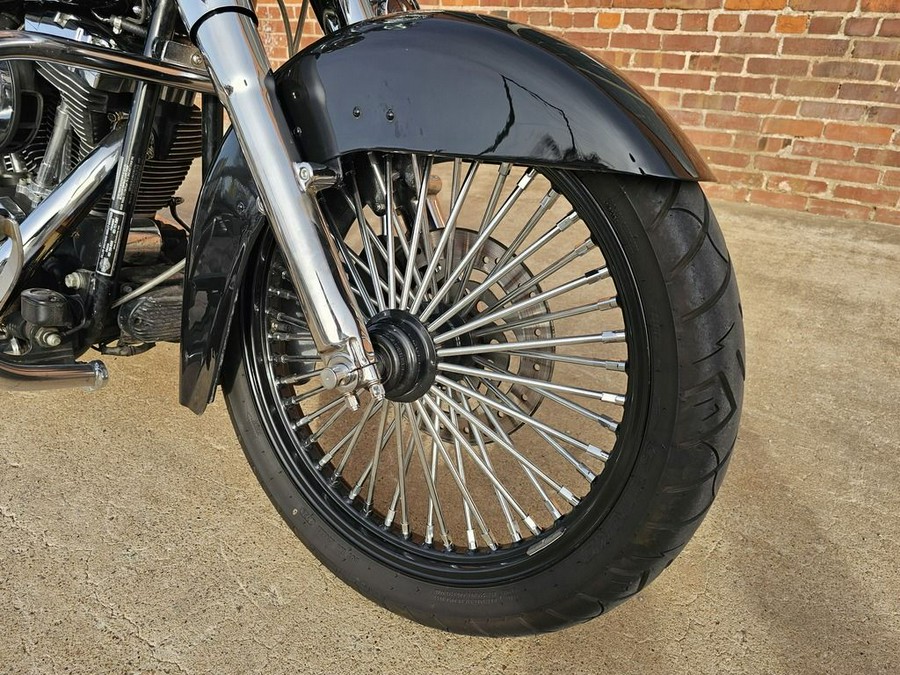

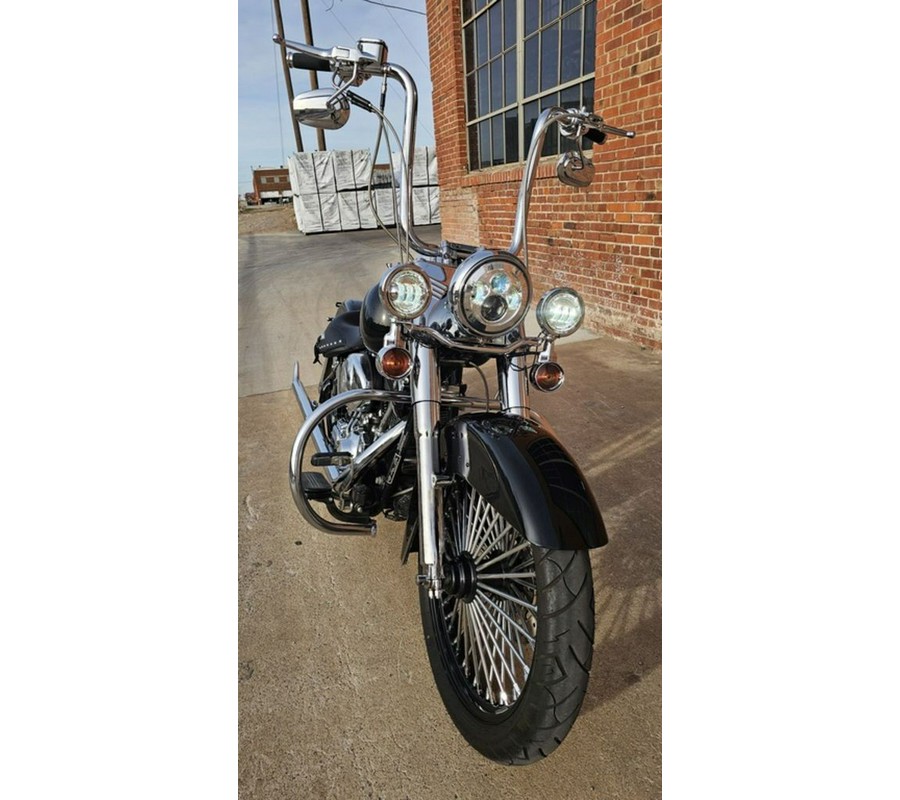

2004 Harley Davidson Fat Boy. 24,266 miles. 88 cubic inch twin cam V Twin motor with 5 speed transmission. Bike has 21" front and 18" rear fat spoke wheels, stretched fenders, ape hangers and fresh paint job. Excellent condition! DIMENSIONS
Length 94.3 in. (2395.2 mm)
Seat Height2 25.4 in. (645.2 mm)
Seat Height (unladen) 27.5 in. (698.5 mm)
Ground Clearance 5.1 in. (129.5 mm)
Fork Rake 32.0 degrees
Trail 5.8 in. (147.3 mm)
Wheelbase 64.5 in. (1638.3 mm)
Tires: Dunlop Harley-Davidson Series
Front – D402F MT90B16 72H
Rear – D401 150/80B16 71H
Fuel Capacity (includes 0.5 gal. reserve) 5.0 gal. (18.9 L)
Reserve Fuel Capacity
(warning light at approx. 1.0 gal. for ESPFI models)
Carb 0.5 gal. (1.9 L)
EFI 1.0 gal. (3.8 L)
Oil Capacity 3.5 qts. (3.3 L)
Dry Weight 666 lbs. (302 kg)
Vehicle Weight In Running Order 705 lbs. (320 kg)
Gross Vehicle Weight Rating 1160 lbs. (527 kg)

ENGINE

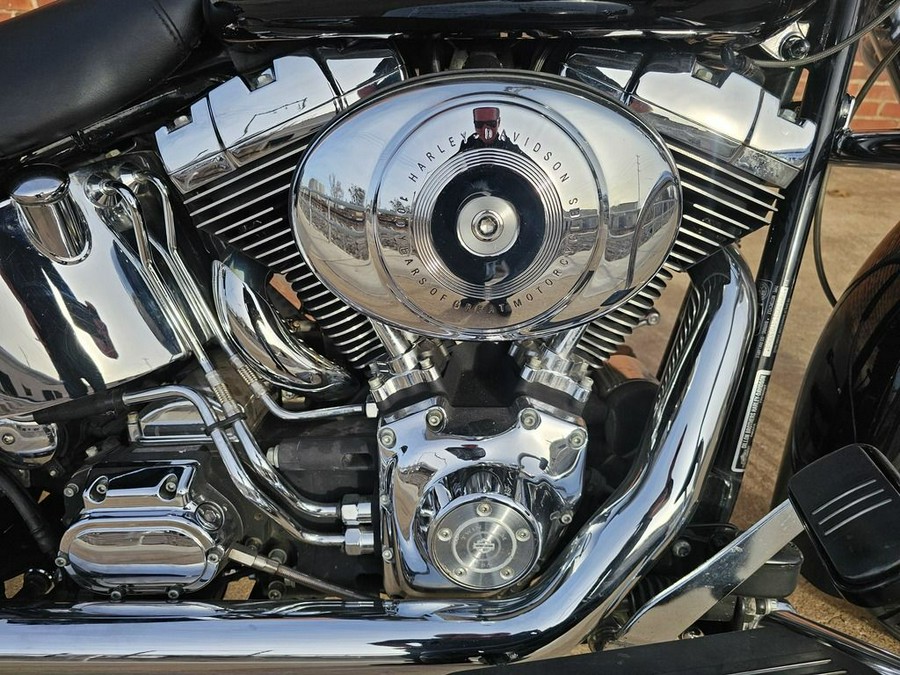

Engine Air-cooled Twin Cam 88B™ (balanced)
Valves Pushrod-operated overhead valves; w/ hydraulic
self-adjusting lifters; two valves per cylinder
Bore x Stroke 3.75 x 4.0 in. (95.18 x 101.52 mm)
Displacement 88 cu. in. (1450 cc)
Compression Ratio 8.9:1
Fuel System3 Carburetion or
Electronic Sequential Port Fuel Injection (ESPFI)

DRIVETRAIN
Primary Drive Chain, 36/25 ratio
Final Drive Belt, 32/70 ratio
Clutch 9-Plate, wet
Transmission Five-speed
Overall Ratio:
1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150

CHASSIS
Frame Mild steel tubular frame,
rectangular section backbone,
stamped, cast and forged junctions,
forged fender support, MIG welded
Swing Arm Mild steel, rectangular tube sections,
stamped junctions, MIG welded
Front Fork 41.3 mm, telescopic w/ “beer can” covers
Wheels 16 in. disc front,
16 in. disc rear
Brakes:
Caliper type Four-piston front and rear
Rotor type (diameter x width):
Patented, Uniform Expansion Rotors
Front 11.5 in. x .20 in. (292.1 mm x 5.08 mm)
Rear 11.5 in. x .23 in. (292.1 mm x 5.84 mm)
Suspension travel:
Front Wheel 5.1 in. (129.5 mm)
Rear Wheel 4.3 in. (109.2 mm)

PERFORMANCE
Engine Torque (per SAE J607)4:
North America 85 ft. lbs. @ 3000 rpm (115.0 NM @ 3000 rpm)
Lean Angle (per SAE J1168):
Right 29 degrees
Left 27 degrees

ELECTRIC
Battery Sealed, maintenance-free, 12-volt, 19 amp-hour,
270 cca (per Battery Council International rating)
Charging Three phase, 38-amp system
(439 watts @ 13v, 2,000rpm, 489 watts max power @ 13v)
Starting 1.2 kw electric w/ Bendix-type engagement
Lights: (As per country regulation)
Headlamp Quartz halogen 55-watt low beam,
60-watt high beam
Tail/stop lights 8w/28w (5w/21w)
Turn signal lights (self-canceling) 28w (21w)
Indicator lamps High beam, neutral, oil, turn signals,
engine diagnostics and security system (optional)5

STYLING/CONVENIENCE
Engine Trim Black powder-coated w/ chrome treatment
Exhaust System Chrome over/under shotgun duals
Oil Tank Chrome “Horseshoe” w/ chrome external oil lines
Ignition Tank console-mounted
Seat Two-up
Handlebars Stainless steel, wide, cruiser
Passenger Backrest Available Genuine Motor Accessories
Foot Supports Full-length operator floorboards
w/ heel-toe shift lever
Rear Fender Full coverage
Rear Fender Supports Chrome
Fork Lock Common w/ ignition key
Instruments Electronic speedometer w/ odometer
and resettable tripmeter
w/ diagnostic readout capabilities
Flasher Hazard warning integrated into turn signal controls
