2024 OSET TXP24
Portland, OR
Listing
Description
Changing the game
The TXP-24 has been the highest priority bike for the OSET R&D team, and we have not held back. There are virtually no shared parts with the old machine. This is a ground up re-design, literally from the rubber up. Lighter weight, improved geometry, vastly better suspension and the weight of the motor in the main frame. Then, the performance: DOUBLE the power, 50% more battery capacity, way more efficiency. Massively smoother. Longer run times. Game changer.
The TXP-24 comes in Trials form but also includes the Xplore moto style seat seen here.
All New Motor
The OSET motor on the TXP-20 & TXP-24 uses a much higher specification sensor system, reading thousands of positions per revolution!
The result is a highly efficient and smooth power system:
- Higher Performance & Power
- Greater Efficiency
- Better Cooling
- Splined Sprocket Shaft
- Removeable in 5 Minutes
OSET Designed Battery
OSET Lithium Battery packs combine more capacity & power with the latest tech available. With more capacity the new TXP-24 can now reach up to three hours of light riding and slightly less when competition riding.
- 58% energy increase
- Robust internal design with close tolerance cell holders.
- Reinforced case for max strength and impact resistance.
- IP67 rated for superior water protection.
- Single twist connector for easy connection.
- Integrated carry-handle.
- Battery state of charge LED indicator.
- On board diagnostic port.
Brushless Controller
The controller is an incredibly powerful ‘brain’, capable of making many thousands of calculations per second, and ’controlling’ the response of the bike. The new brushless drive system is a huge step up.
- Sin wave Field Oriented Control (FOC).
- Active Performance Stabilisation (APS).
- Safety features including constant status monitoring.
- ‘Plug-and-Play’ installation.
- IP-67 for superior weather protection.
- Alloy main casing with exposed fins for cooling
DESIGNED FOR EVERYWHERE
Trials
The TXP-24 has been completely redesigned from the ground up. Every component has been meticulously built for the perfect ride.
Increased Power. More Control. Better Response.
Xplore
With a seat included, you have a second bike ready to ride just for fun, take on muddy trails and relax on the custom designed padded seat unit.
Power on and take a load off!
Play
The TXP-24 is all out for fun - the extra power and increased control via the custom controller provide better agility opening up new and exciting places to ride.
Take it to the MAX!
Stay up to date and get the latest OSET news!
Go out and Xplore
Enjoy the sounds of nature whilst riding in the wild - Be a part of it on the TXP-20 and TXP-24 range of OSET bikes.
TXP-24 Specifications
| Weight Limit (Rider) | 198.41 lbs (90kg) |
|---|---|
| Wheelbase | 48.03 in. (1220mm) |
| Ground Clearance | 12 in. (305mm) |
| Handlebar Height | 42.51 in. (1080mm) |
| Front Peg Height | 13.97 in. (355mm) |
| Weight (Trials) | 106.04 lbs. (48.1kg) |
| Weight (Xplore/Play) | 109.34 lbs. (49.6kg) |
| Seat Height (Trials) | 25 in. (635mm) |
| Seat Height (Xplore/Play) | 31.88 in. (810mm) |
| Frame | Steel tubular frame, replaceable alloy sump plate. |
|---|---|

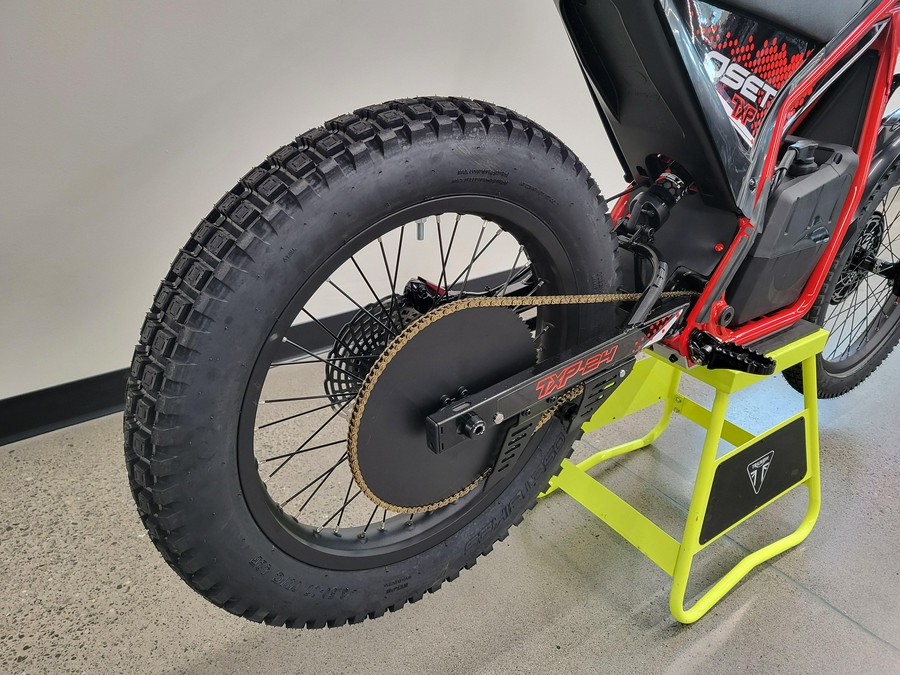

| Swingarm | Steel with integrated chain tensioners and chain guide. |
| Suspension (Front) | 160mm air sprung, with rebound, compression & volume adjustment. |
| Suspension (Rear) | 160mm air sprung, with rebound & volume adjustment. |

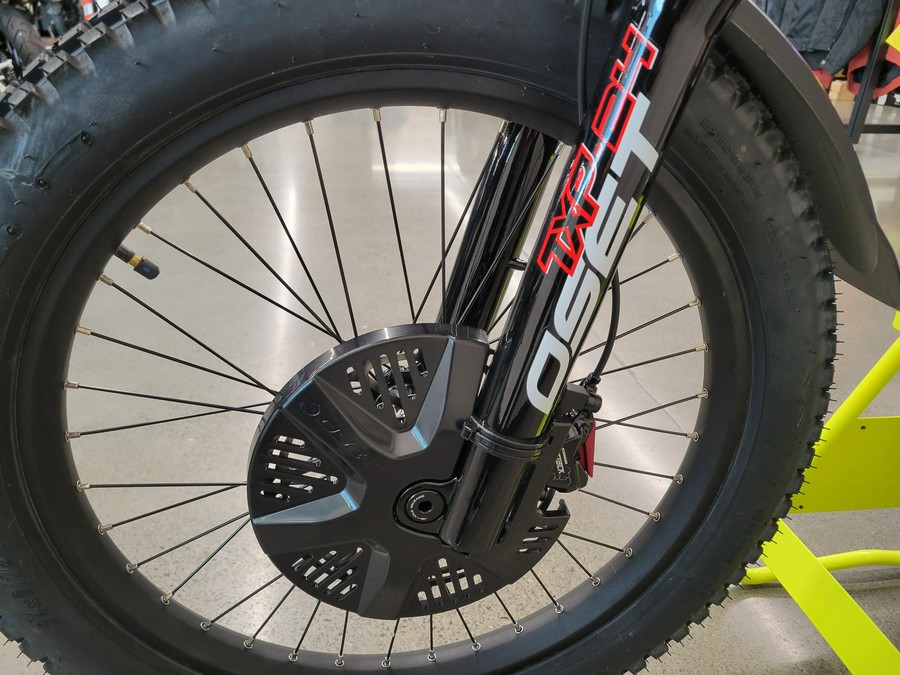

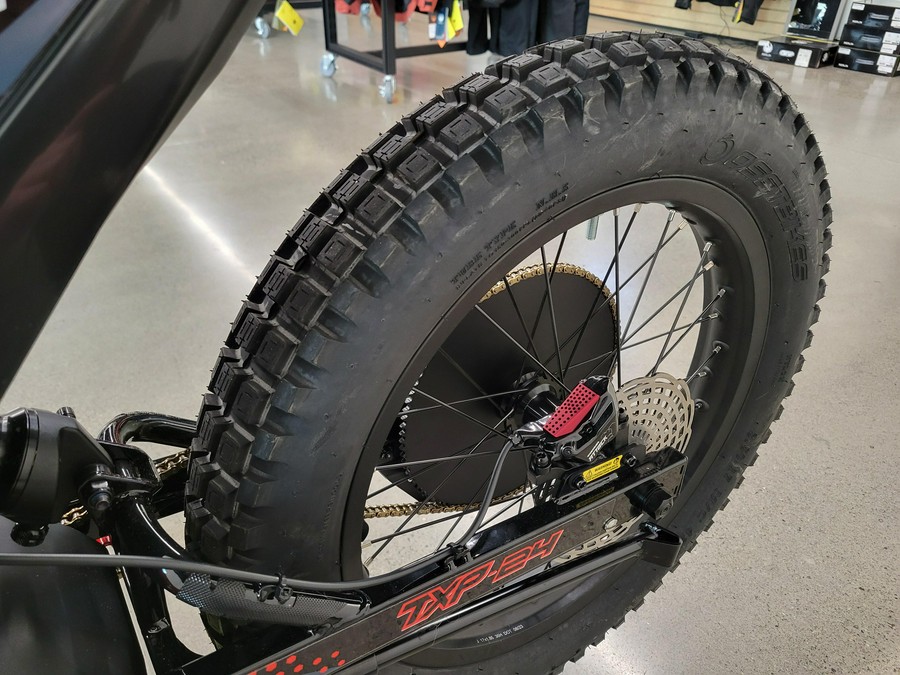

| Brakes | Four piston hydraulic disc, 200/180mm rotors and front rotor guard. |
| Controller | 1600W controller with IP67 rated connectors. |
|---|---|

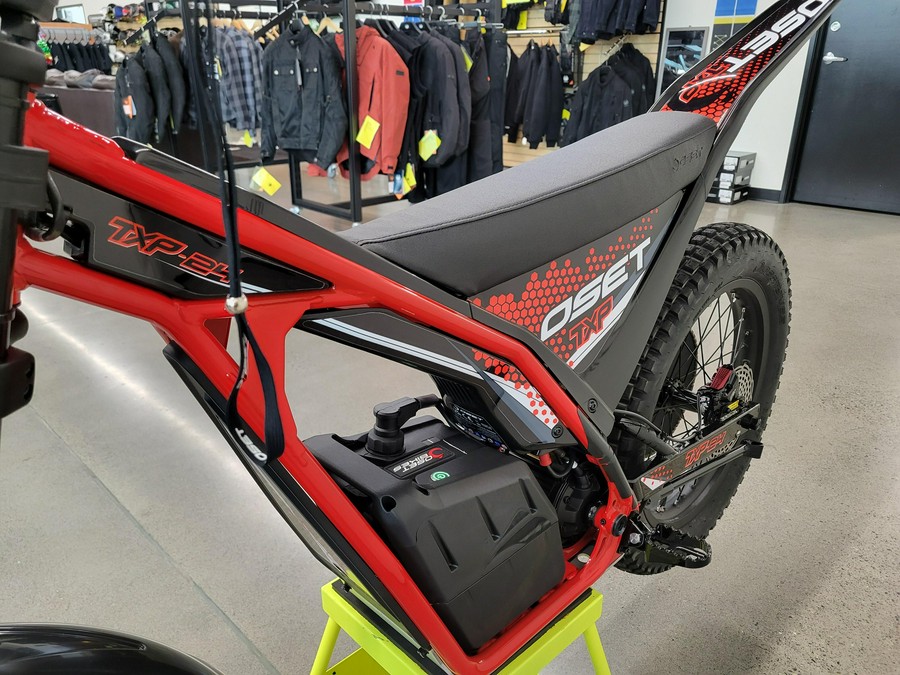

| Battery | Sealed, 50.4v nominal 28Ah lithium battery with LED status indicator. |
| Motor | OSET BLDC with position encoder. |
| Safety | Patented OSET magnetic kill switch with lanyard. |

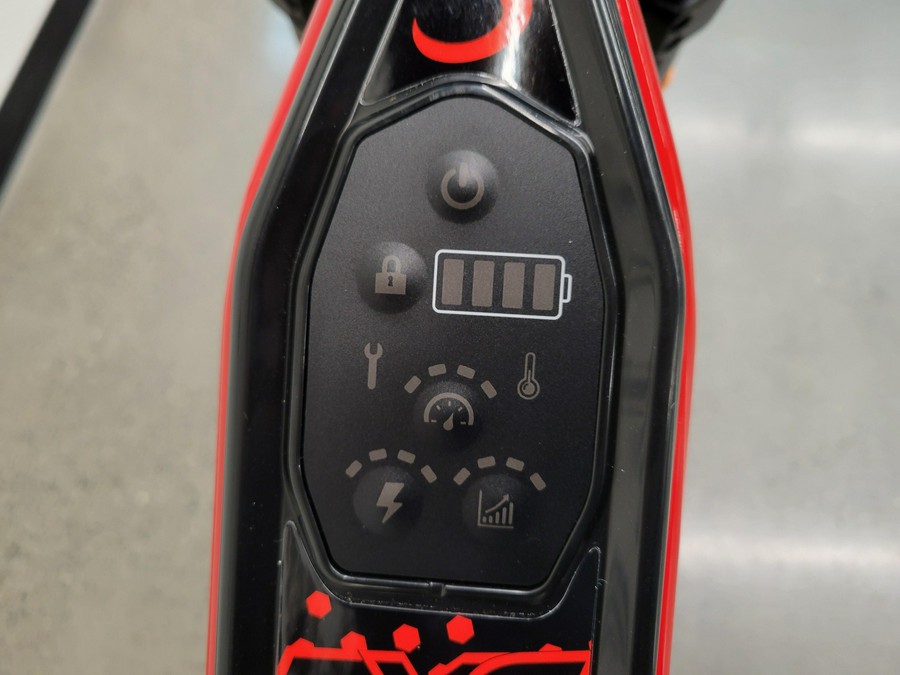

| Adjustment | Integrated keypad, with adjustable speed, power and throttle response. |
| Throttle | Dual sensing twist type. |
